Machines and datasheets.

Three PVD machines for DLC ta-C coating, the carbon plasma source and the test instrument. Specs, options and prices as published by SWISSIMPIANTI.

Side by side.

Scroll sideways on a phone →
PLASMA ADS 600 SOBOL 4-500 PLASMA CUBE 400
CoatingDLC ta-CDLC ta-CDLC ta-C, TiN, ZrN
Carbon pulsed arc221
Titanium arc221
Ion source · biasyes · yesyes · yesyes · yes
Carousel8 axes, ø600 mm, remote table on trolley68 axes, ø500 mm68 axes, ø400 mm, remote table with trolley
VacuumVAT gate valves, Edwards TMP, mechanical pumpEdwards valves, diffusion and mechanical pumpEdwards valves, diffusion and mechanical pump
Working areaH 400 × ø600 mmH 400 × ø500 mmH 100 × ø500 mm
Price€460 000€220 000€190 000
PLASMA ADS 600 with its loading trolley

PLASMA ADS 600

DLC ta-C
Sources
Carbon pulsed arc source ×2 · titanium arc source ×2 · ion source · bias
Table
Remote table trolley, 8-axis mobile carousel, ø600 mm
Vacuum
VAT gate valves · Edwards TMP · mechanical pump
Working area
H 400 mm × ø600 mm

Options

  • Remote table, 8 axes, ø500 mm €9 000
  • Trolley €1 000
  • Holder, 3-axis rotation, 980 positions, ø1–12 mm €12 000
€460 000Price published by SWISSIMPIANTI
Ask for an offer

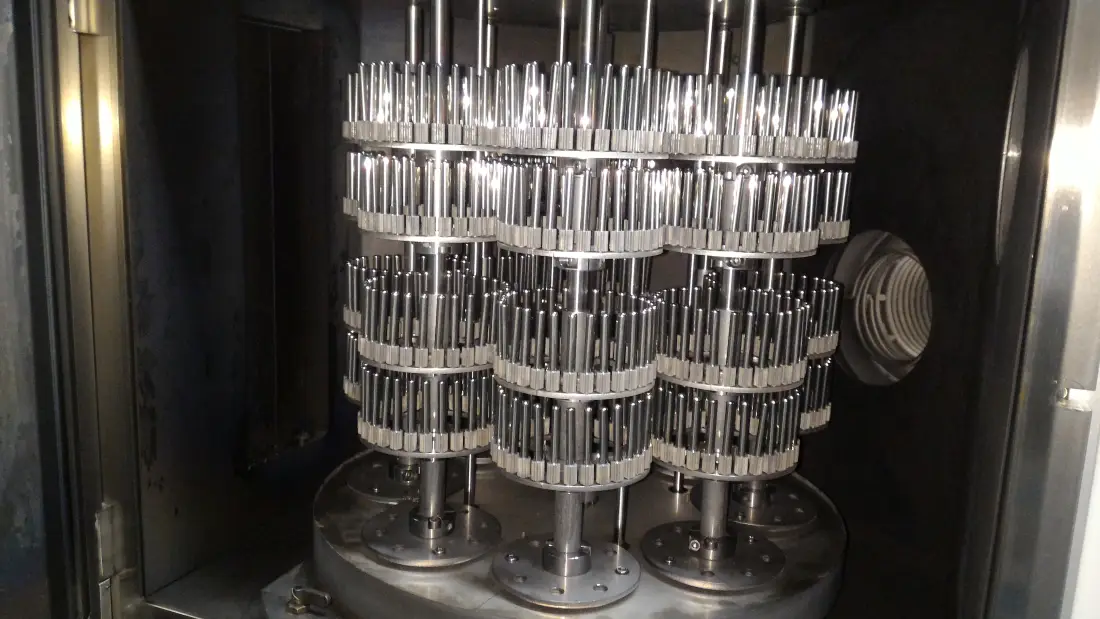

SOBOL 4-500 PVD machine Carousel inside the SOBOL 4-500 chamber

SOBOL 4-500

DLC ta-C
Sources
Carbon pulsed arc source ×2 · titanium arc source ×2 · ion source · bias
Table
68-axis mobile carousel, ø500 mm
Vacuum
Edwards vacuum system · valves · diffusion and mechanical pump
Working area
H 400 mm × ø500 mm

Options

  • Remote table, 68 axes, ø500 mm €5 000
  • Trolley €1 000
  • Holder, 3-axis rotation, 980 positions, ø1–12 mm €9 000
€220 000Price published by SWISSIMPIANTI
Ask for an offer

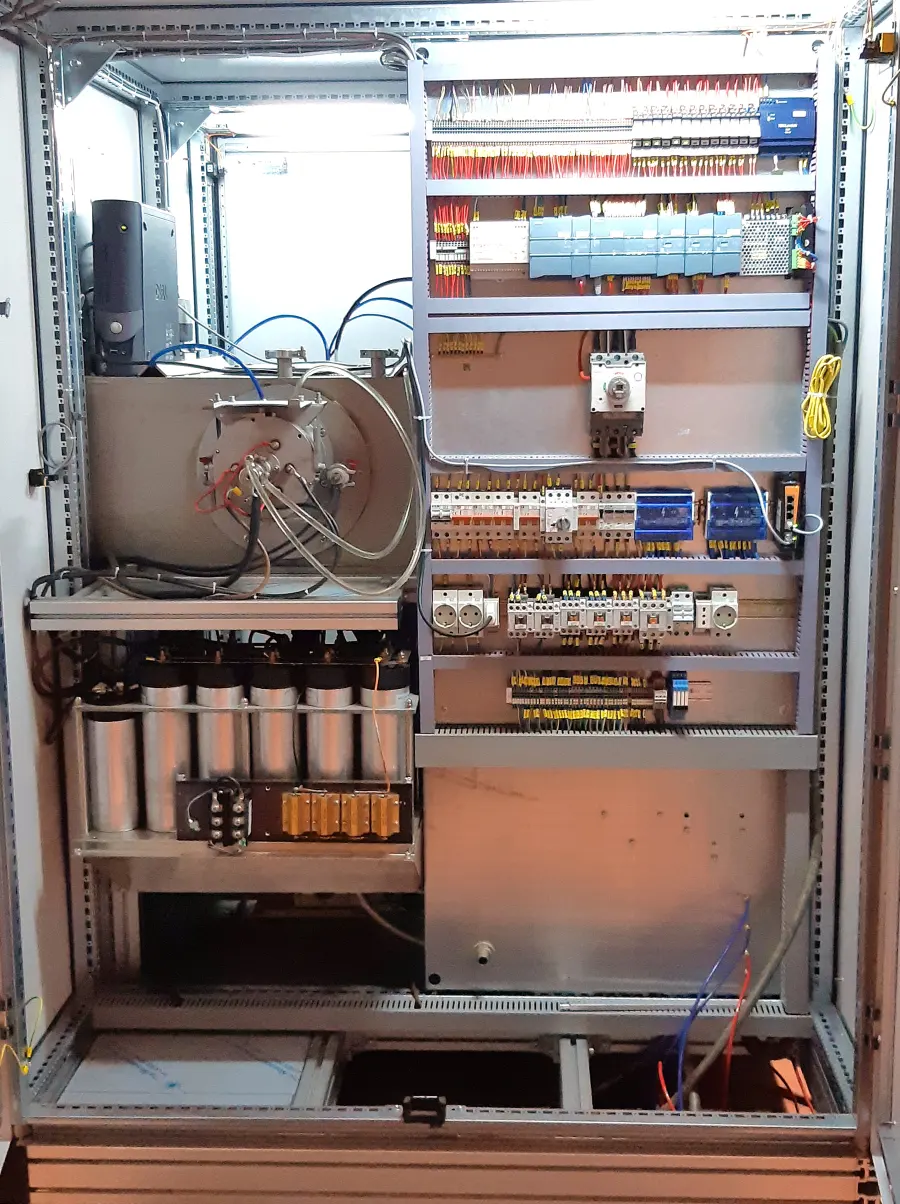

PLASMA CUBE 400, front with control screen PLASMA CUBE 400, electrical cabinet

PLASMA CUBE 400

DLC ta-C · TiN · ZrN
Sources
Carbon pulsed arc source ×1 · titanium arc source ×1 · ion source · bias
Table
Remote table with trolley, 68-axis mobile carousel, ø400 mm
Vacuum
Edwards vacuum system · valves · diffusion and mechanical pump
Working area
H 100 mm × ø500 mm

Options

  • Remote table, 68 axes, ø500 mm €5 000
  • Trolley €1 000
  • Holder, 3-axis rotation, 490 positions, ø1–12 mm €7 000
€190 000Price published by SWISSIMPIANTI
Ask for an offer

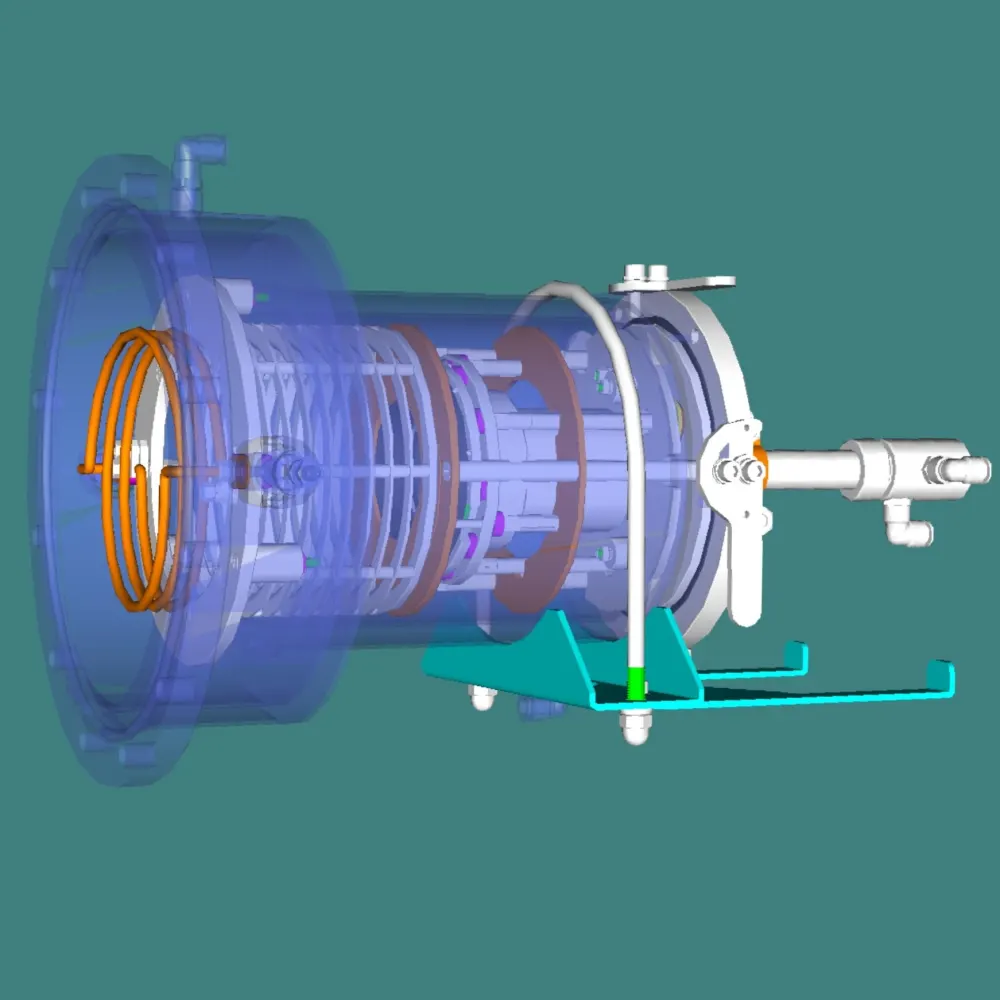

Set of Pulse Plasma Carbon Gun with its power supply Cutaway drawing of the Pulse Plasma Carbon Gun

Set of Pulse Plasma Carbon Gun

Carbon plasma source
The set
Pulse Plasma Carbon Gun · capacitors unit · power supply · 32 sets of graphite parts
Spare parts
Anode · ignition unit · ceramic parts

Power supply

  • Accumulator charging voltage 100–350 V
  • Auxiliary anode supply voltage 300 V
  • 3-point initialization pulse voltage amplitude 500 V
  • Initialization pulse frequency (2000 µF accumulator) 1–20 Hz, step 1 Hz
  • Max pulses per cycle 1–999 999
€20 570Price published by SWISSIMPIANTI
Ask for an offer
Two CALO testers with steel balls and abrasive paste

CALO Tester

Test instrument
Set-up
Timer · angle · rotation speed

Option

  • Digital microscope for measuring €300
€450Price published by SWISSIMPIANTI
Order or ask

We are open to all kinds of collaboration.

A machine to your specifications, a coating run on your parts, or spares for your source: write with the material, the size and the quantity.
