PVD machinesand DLC ta-Ccoating.
We design and build PVD equipment for industrial use to the customer’s specifications — and apply DLC coating to the parts you send us.
Dr. Andrey G. Brigadin, DirectorMechanical engineer, PhD. More than 20 years in the design and manufacture of plasma-vacuum equipment.

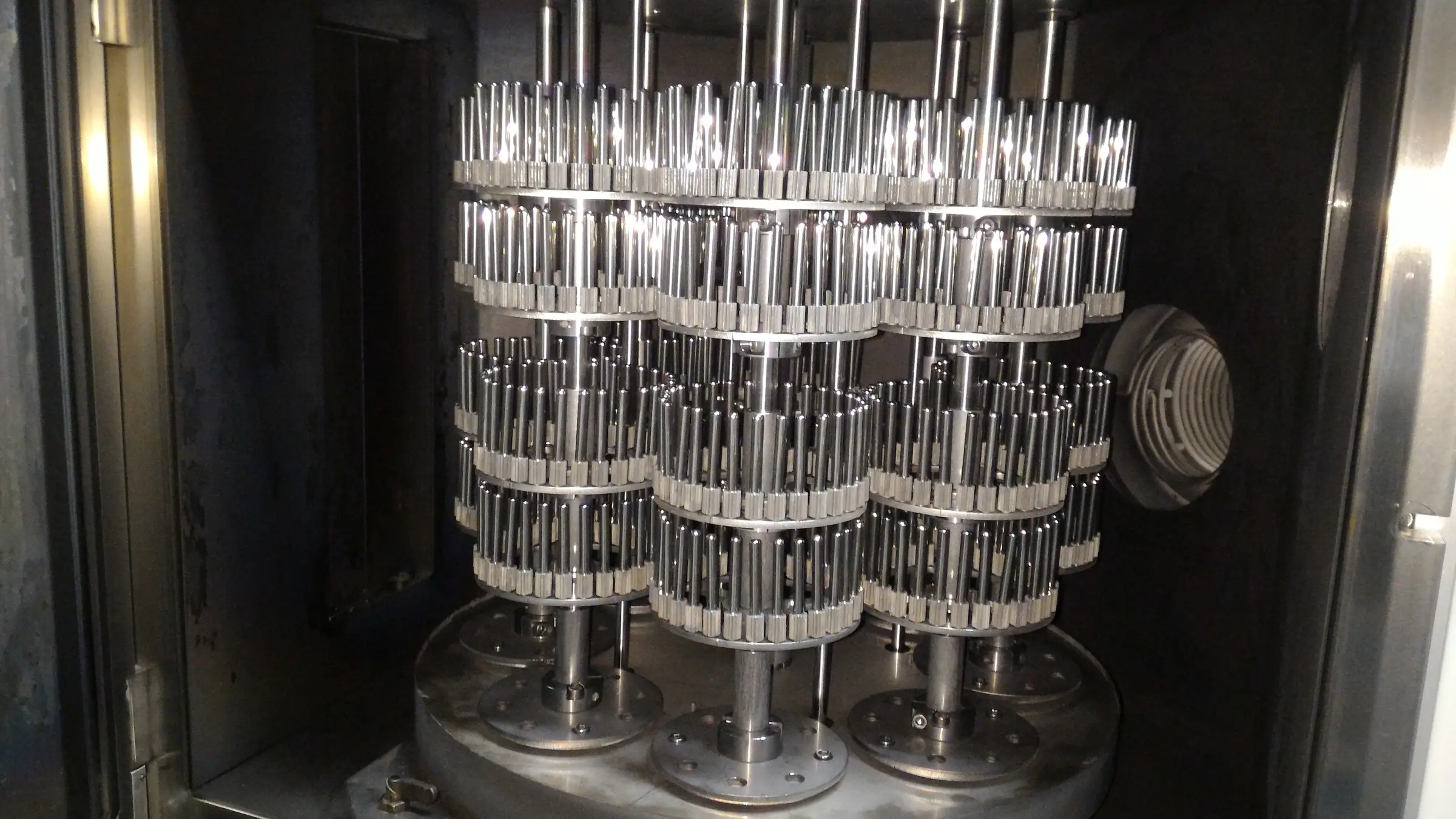

SOBOL 4-500 · carousel in the vacuum chamber
Three machines.
Every spec and price on the page.
Pick by working area and coating type. Each machine has a full datasheet, with options and prices, to put side by side with other suppliers.

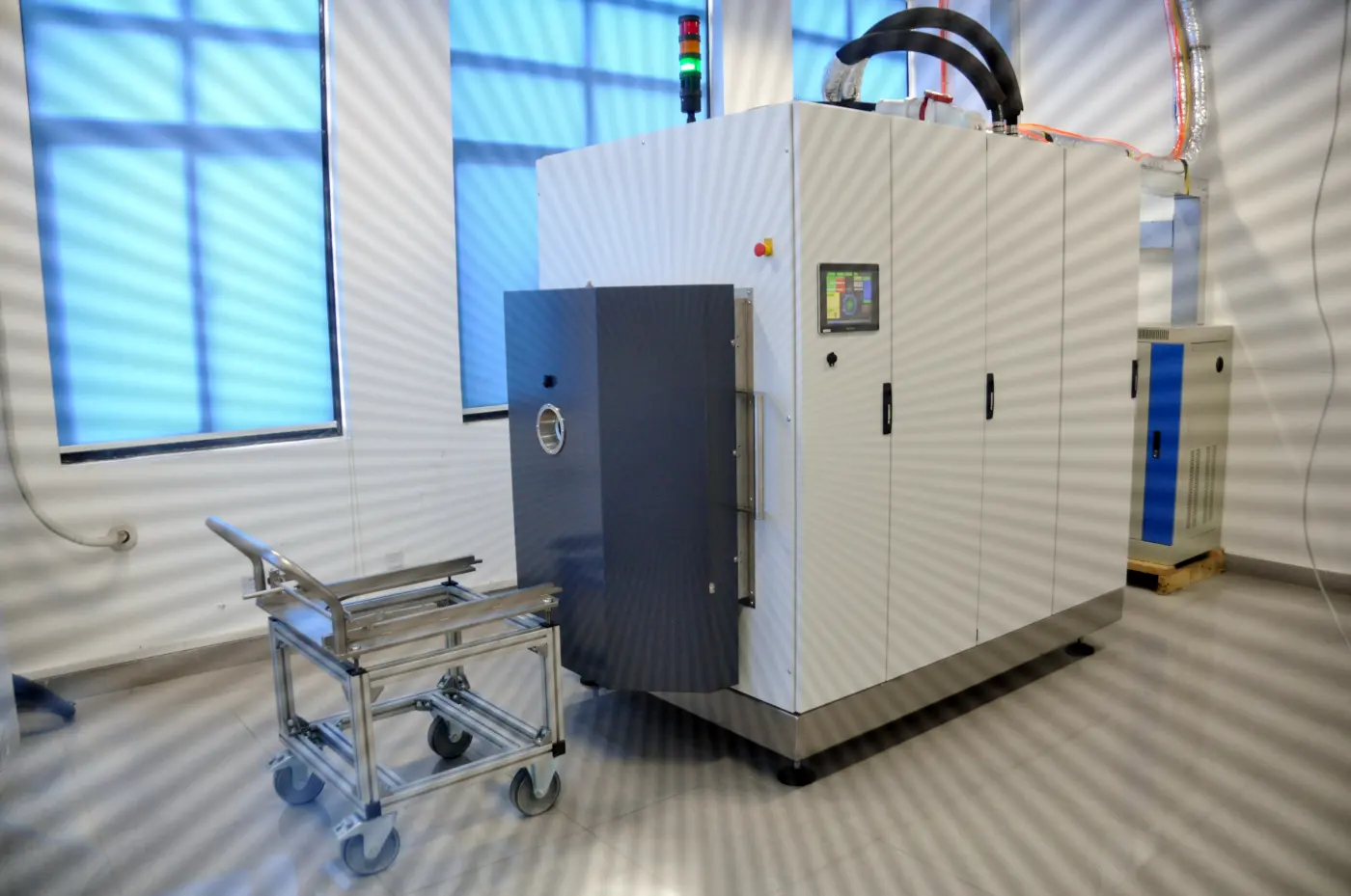

PLASMA ADS 600
DLC ta-C- Working area
- H 400 mm × ø600 mm
- Carousel
- 8 axes, ø600 mm, on trolley
- Sources
- 2 carbon pulsed arc, 2 titanium arc, ion source, bias
- Vacuum
- VAT gate valves, Edwards turbomolecular pump

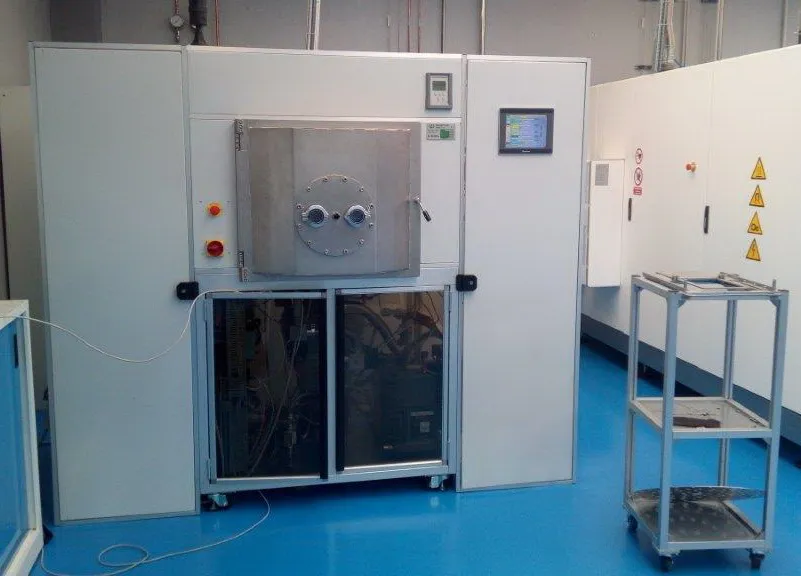

SOBOL 4-500
DLC ta-C- Working area
- H 400 mm × ø500 mm
- Carousel
- 68 axes, ø500 mm
- Sources
- 2 carbon pulsed arc, 2 titanium arc, ion source, bias
- Vacuum
- Edwards valves, diffusion and mechanical pump

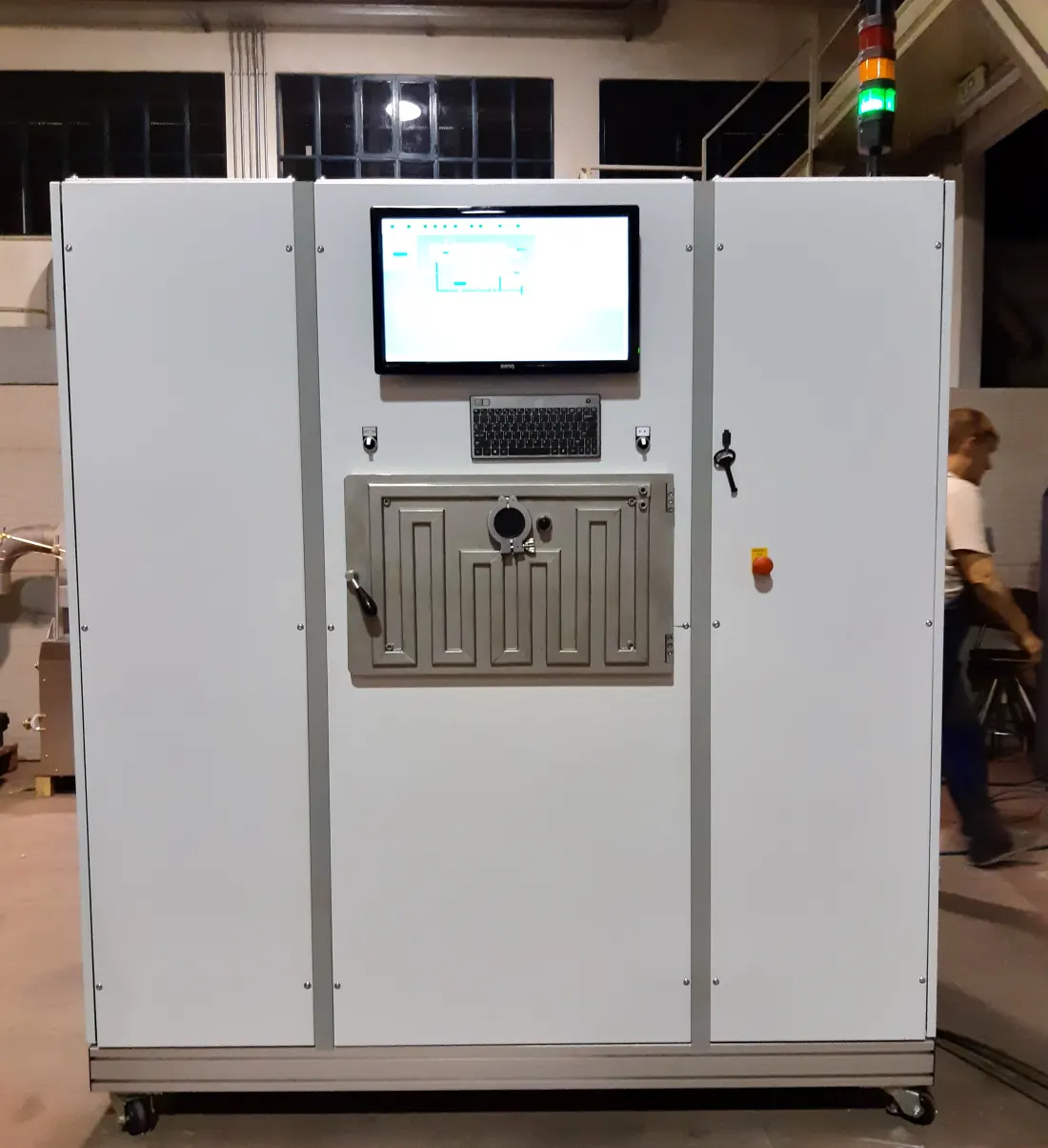

PLASMA CUBE 400
DLC ta-C · TiN · ZrN- Working area
- H 100 mm × ø500 mm
- Carousel
- 68 axes, ø400 mm, on trolley
- Sources
- 1 carbon pulsed arc, 1 titanium arc, ion source, bias
- Vacuum
- Edwards valves, diffusion and mechanical pump

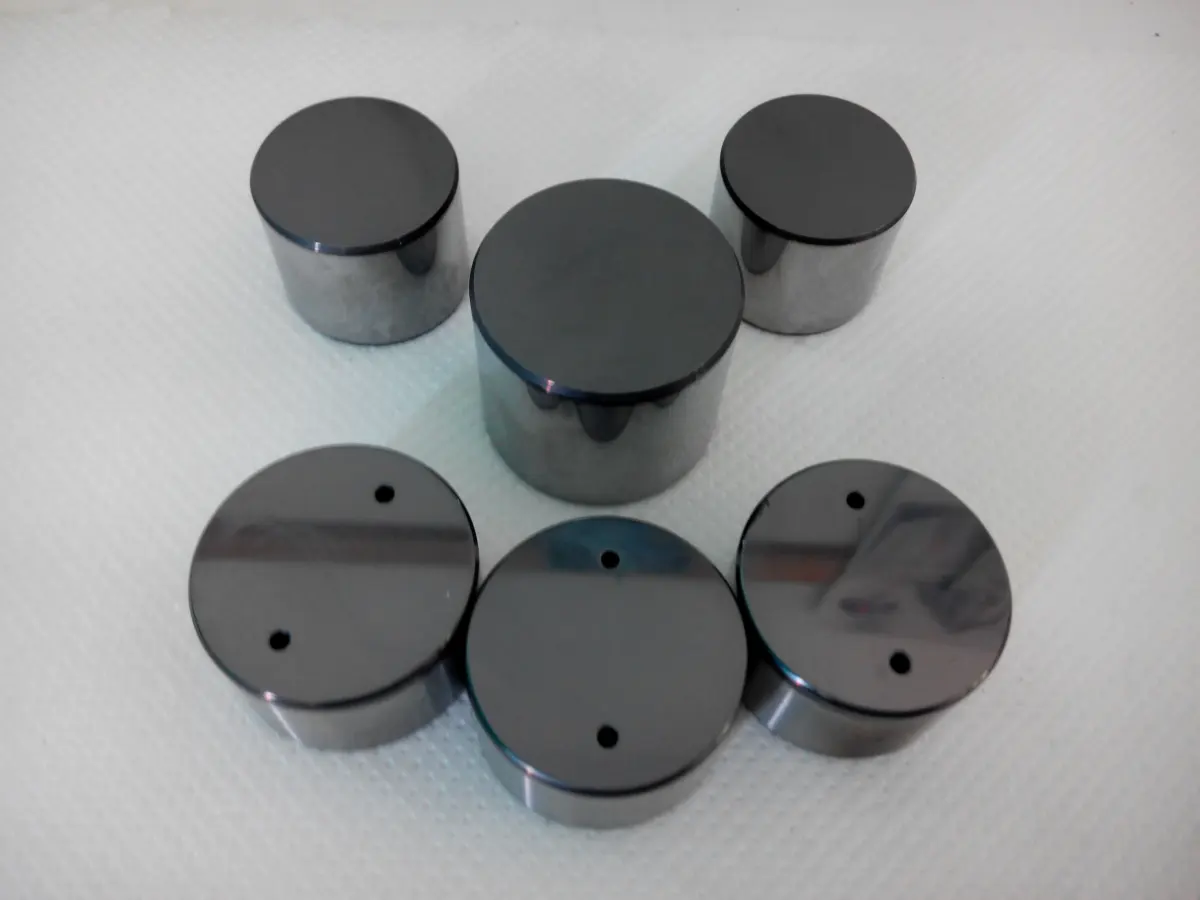

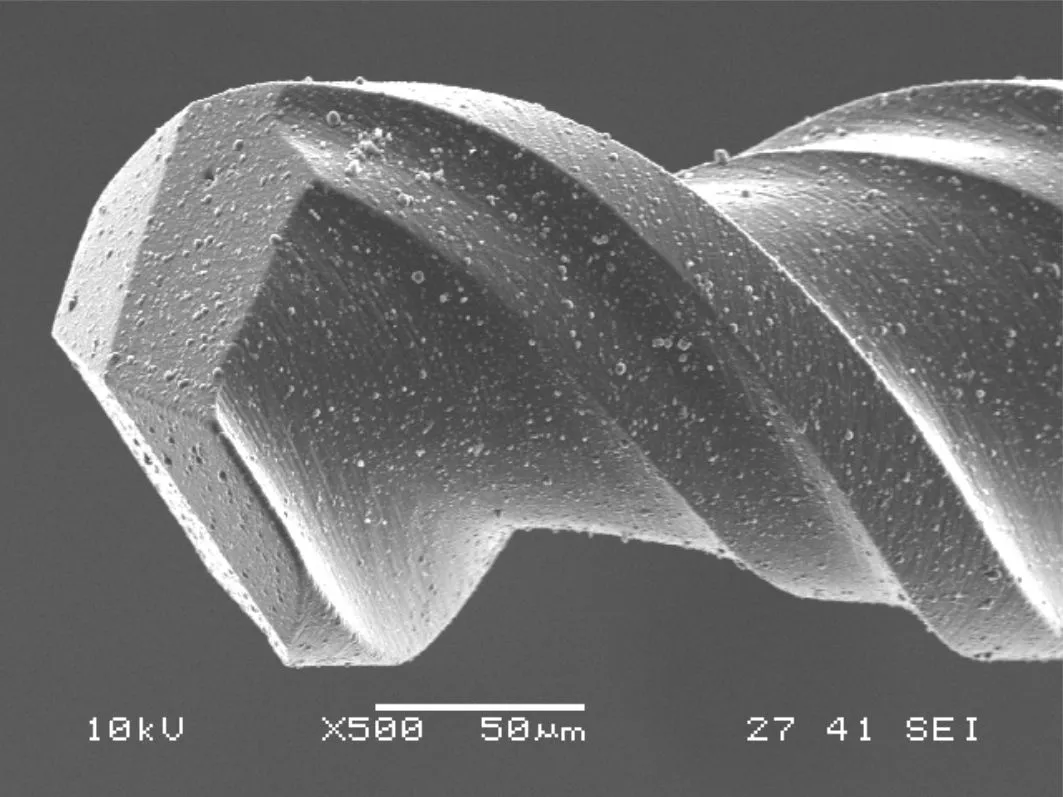

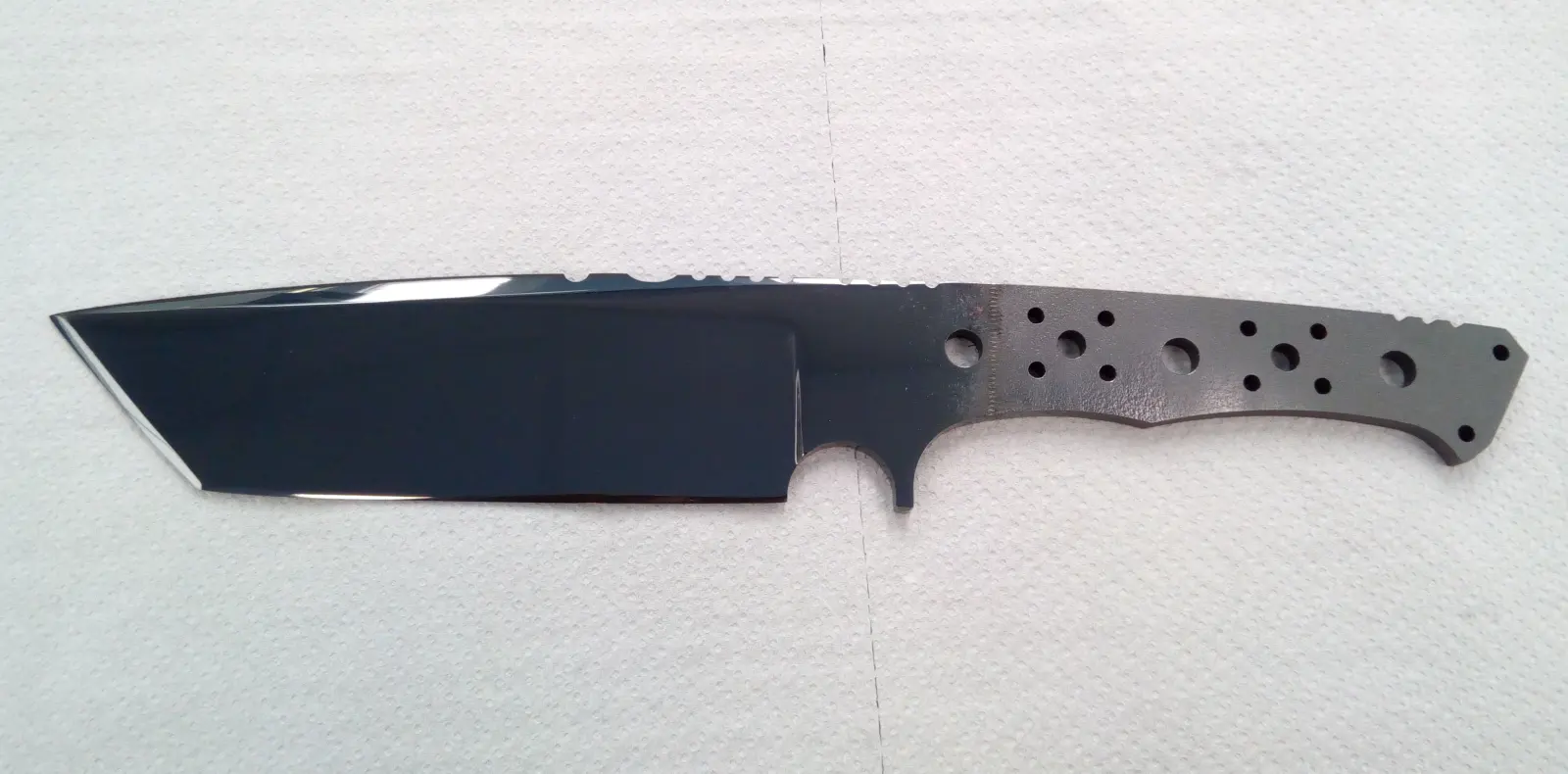

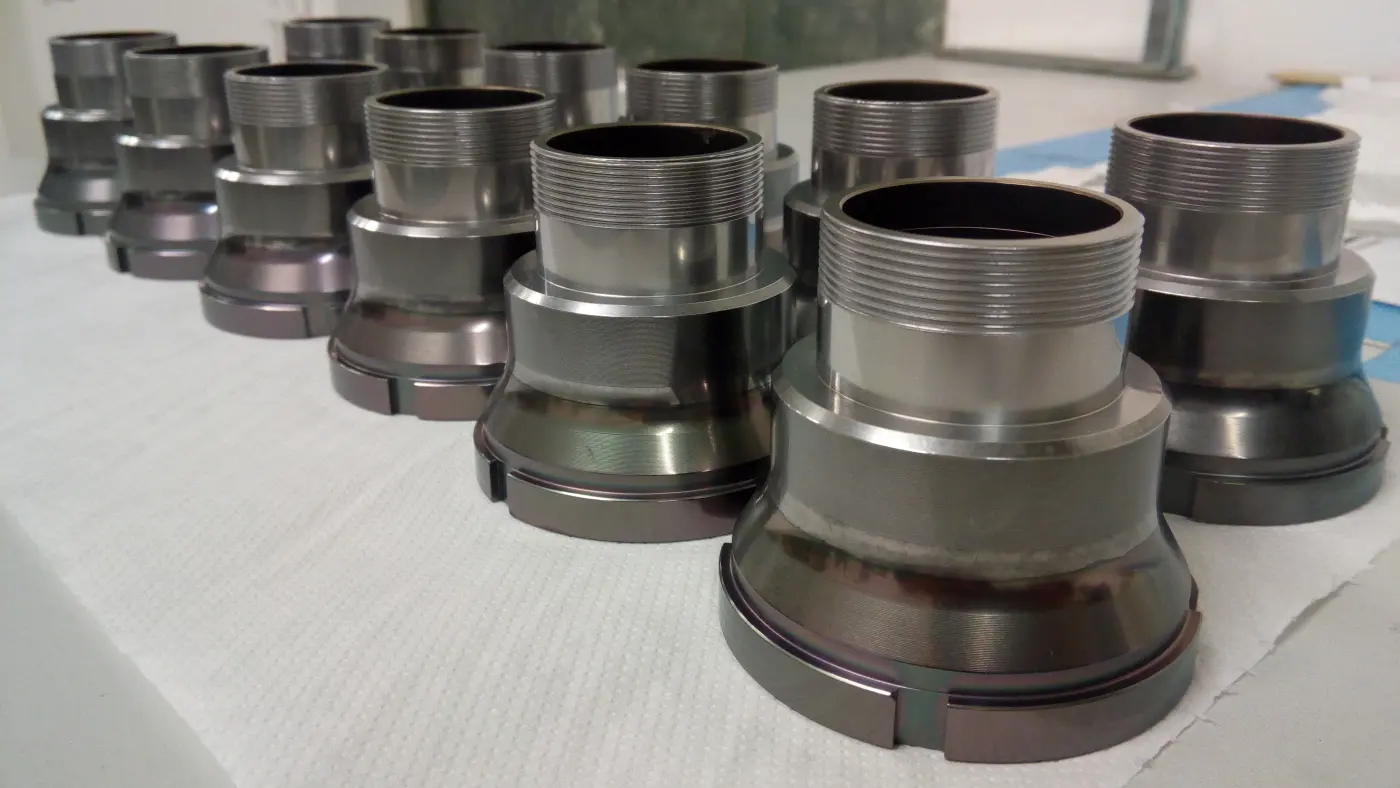

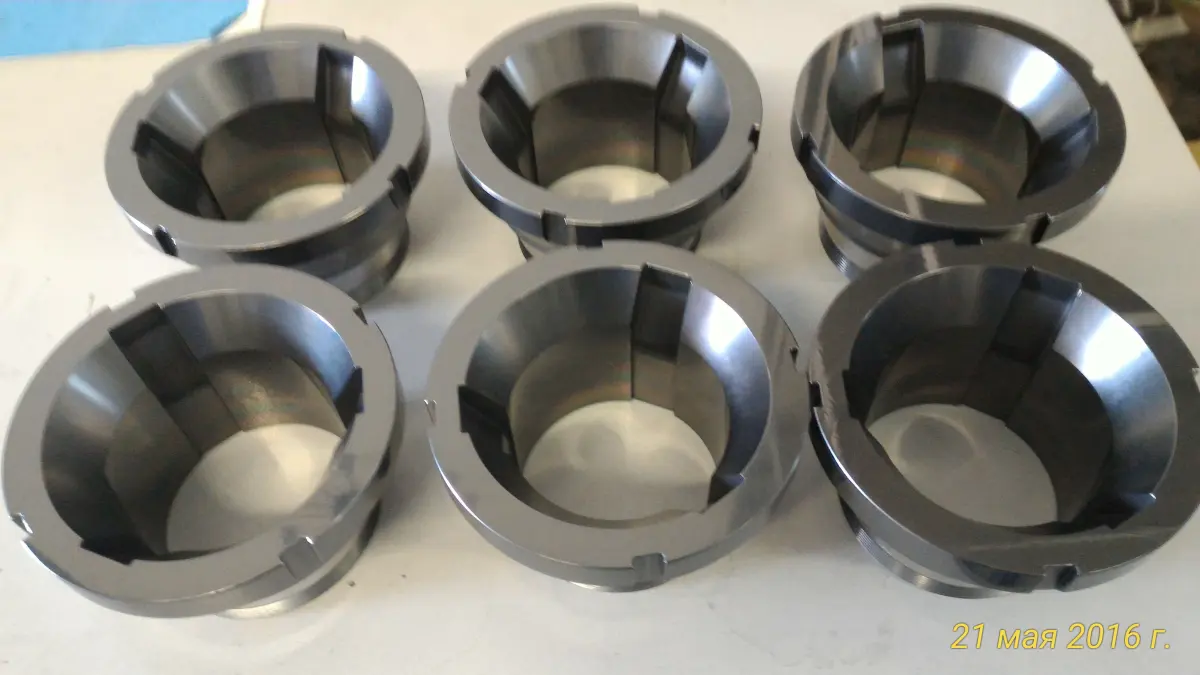

DLC coating on the parts you supply.
Send us your parts and we apply DLC — diamond-like carbon. Lower friction, lower wear, and it can be deposited on almost anything that can be put in a vacuum.
- Friction against steel
- 0.05–0.20
- ta-C hardness
- 4000–9000 HV
Graphite plus energy.

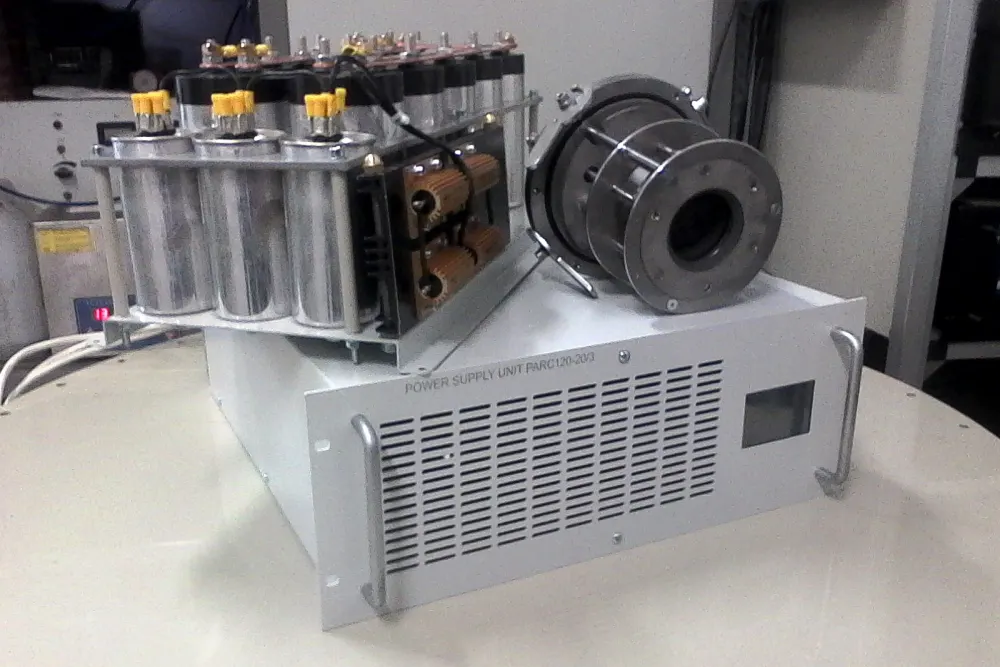

A pulsed carbon arc.
Our plasma source fires a high-current pulsed cathodic vacuum arc. No toxic by-products, no harmful waste — and the film is tuned by pulse width, frequency, number and ion energy.
| Type | Hardness | sp³ |
|---|---|---|
| Me-DLC a-C:H:Me | 500–2000 HV | 35% |
| C-DLC a-C:H | 1500–4000 HV | up to 75% |
| ta-C tetrahedral amorphous carbon | 4000–9000 HV | 80–85% |
After delivery: service, spare parts, consumables.

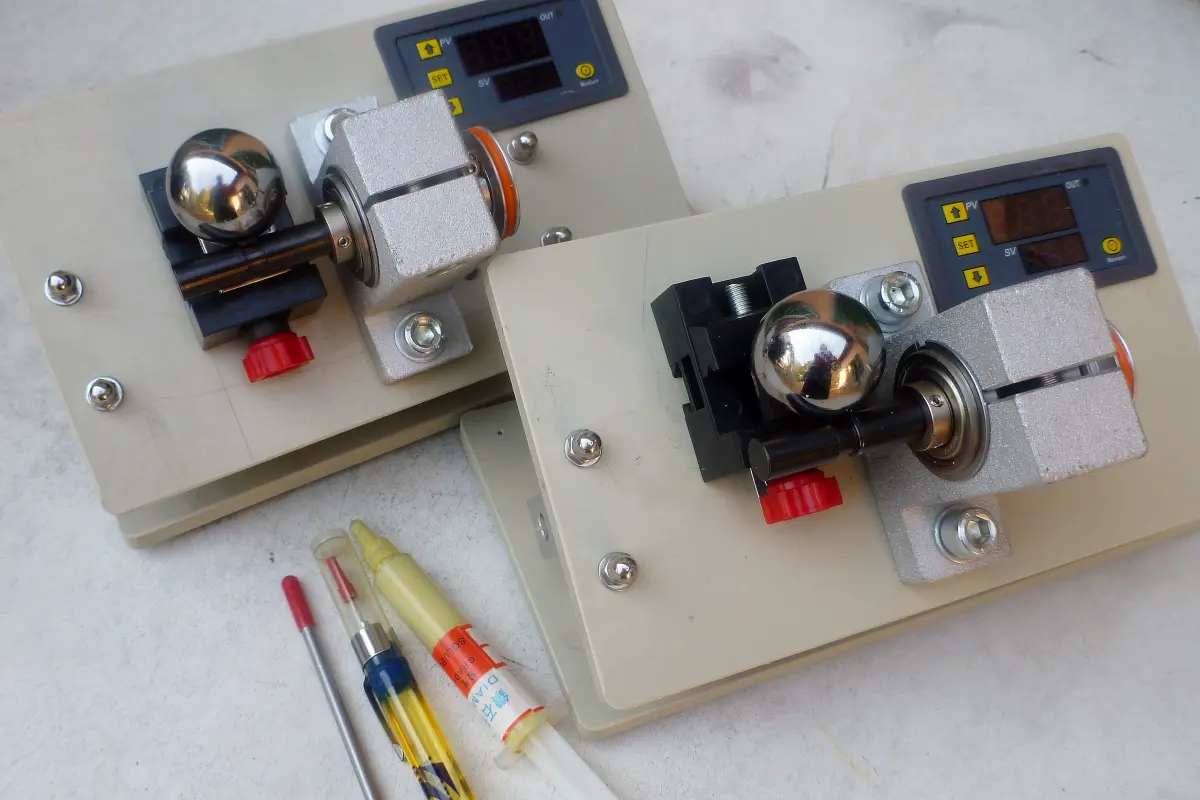

Maintenance support for the equipment, plus the source and the test instrument sold on their own.
Founded in 2014 on twenty years of plasma-vacuum work.
SWISSIMPIANTI Sagl grew out of more than 20 years of experience in the design and manufacture of plasma-vacuum equipment and the development of PVD technology.
- Director
- Dr. Andrey G. Brigadin — mechanical engineer, PhD, Tomsk Polytechnic University
- Company
- SWISSIMPIANTI Sagl, Balerna, Ticino
- What we do
- Technology and design · production of PVD equipment · DLC coating · service
We are open to all kinds of collaboration.
A machine to your specifications, a coating run on your parts, or spares for your source: write with the material, the size and the quantity.
SWISSIMPIANTI Sagl
Via G. Guisan 112
6828 Balerna
Switzerland
